The ability to turn a real object into a digital model that is accurate and useful has changed many fields, including manufacturing, engineering, cultural heritage, and specialized medical design. 3D scanning, as it is commonly called, is a very important part of modern reverse engineering, quality control, and custom product development.
For professionals, whether you’re an engineer working on automotive parts, an artist preserving sculptures, a dealer looking for strong solutions, or a teacher training the next generation, it’s important to understand the whole workflow in order to get the best results and be as efficient as possible. This guide explains the four main steps of high-precision 3D digitization.
The Most Important First Step: Picking the Right 3D Scanner
Selecting the right 3D scanner is critical, as it depends on an object’s size, surface complexity, material, and required accuracy. For demanding professional use, versatile handheld structured light and laser scanners are the industry standard. For instance, 3DeVOK’s multi-source scanners combine blue lasers for fine details with infrared for large, markerless scanning. This dual capability allows engineers to seamlessly switch between high-resolution tasks and large-area digitization, ensuring project accuracy and long-term efficiency.
Getting Ready and Setting Up: Making Sure Data Is Safe
Even with very good equipment, data integrity depends on proper setup. The purpose of preparation is to make sure that the 3D scanner can accurately map the surface without any problems or losing its alignment.
Environmental Stability: The scanner and the object must not move. Vibrations can add noise to the point cloud, especially in industrial settings where precision is very important.
Surface Treatment: Optical 3D scanner systems have trouble with surfaces that are very reflective, clear, or dark. To make a smooth, matte surface, non-reflective powder spray is usually used. But high-end 3DeVOK devices use cutting-edge technology to reduce the need for spraying. They can capture complex materials like black or shiny plastics directly.
Alignment Markers: Small adhesive markers are put on the surface of big objects or objects that don’t have clear geometric shapes, like a simple sphere or a blank panel. The scanner uses these markers as reference points to accurately line up multiple scans into one dataset. Advanced hybrid alignment software can use geometry, texture, and markers to make this process easier. This gives you the freedom to do reverse engineering in the field or preserve cultural heritage.
Getting Data: The Main 3D Scanning Process

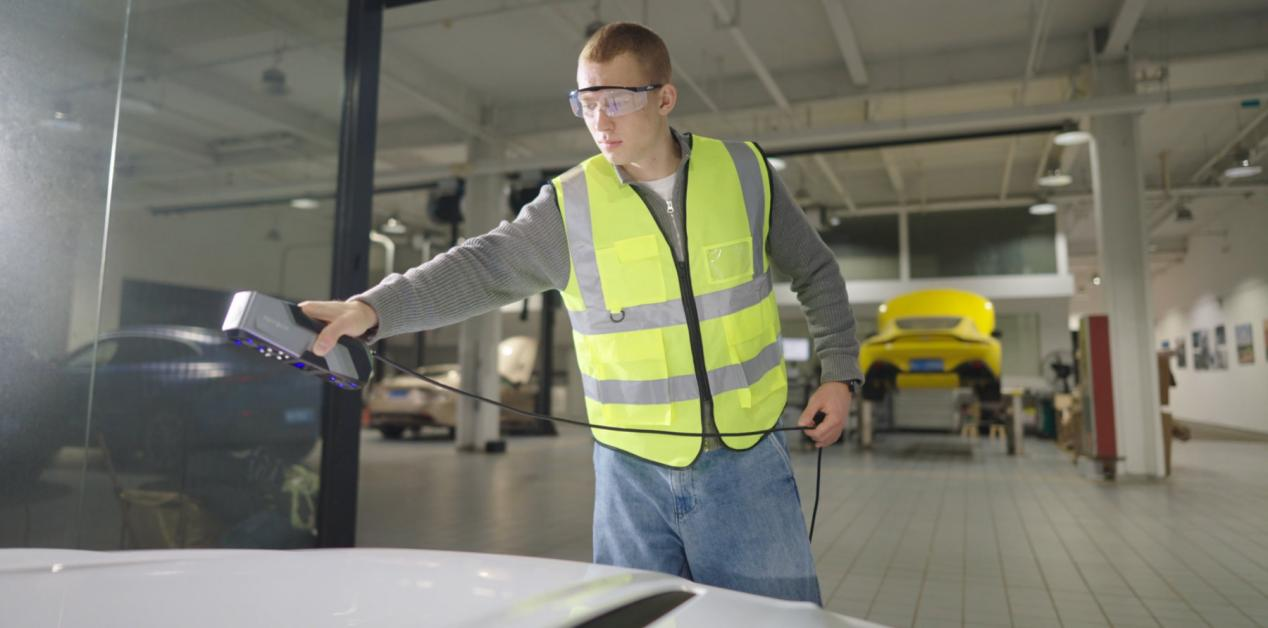

This step transforms a physical object into raw digital data. A high-precision 3D scanner projects patterned light or laser lines onto the object, while cameras record the deformations to generate a dense point cloud—a set of millions of XYZ coordinates representing its surface. For instance, the 3DeVOK MT series captures up to 4.5 million points per second, rapidly creating an accurate digital twin. The operator moves the handheld scanner around the object to cover all angles. This non-contact method safely digitizes fragile objects like artifacts with a resolution down to 0.05 mm, while software displays the point cloud in real time to immediately identify and fill any gaps.
Using professional tools for post-processing and fine-tuning
The raw point cloud is usually too big and unprocessed to be used right away in CAD or 3D printing software. The last step is to turn this information into a smart, useful model.
Registration and Merging: If the object was scanned in parts, the first step is to line up and combine these separate point clouds into one dataset. 3DeVOK‘s high-end software uses advanced algorithms, like hybrid alignment based on geometric features or pre-set markers, to get the datasets to match almost perfectly.
Meshing: The points that are spread out are linked together to make a polygon mesh. This makes the surface geometry, which usually comes out as an STL or OBJ file. These are the standard file formats for 3D printing, visualization, and digital archiving.
Optimization and Export: The last step is to clean up the mesh by filling in small holes, smoothing out rough edges, and getting rid of background noise that isn’t needed. After that, the mesh can be surfaced to make a parametric CAD model (STEP file), which lets engineers measure dimensions, run deviation analyses, or change the design.
From Digital Model to Real-World Use: Actionable Insight
Learning how to use the 3D scanning workflow turns complicated physical things into useful digital assets that are immediately useful to the target industries. This means that distributors need to offer a full range of solutions, from collecting data to making the final model. For artists and engineers, it means getting products to market faster and making perfect digital copies of artifacts that can’t be replaced.
By using real, high-precision technology from companies like 3DeVOK, professionals in fields like reverse engineering, additive manufacturing, education, and cultural preservation can always get reliable, accurate results that encourage new ideas and keep digital fidelity at its highest level. The 3D scanner is always getting better, so today’s next-generation tools can easily handle problems that used to be hard, like scanning shiny or complicated materials. This keeps your workflow accurate and efficient.
